Product Specifications:

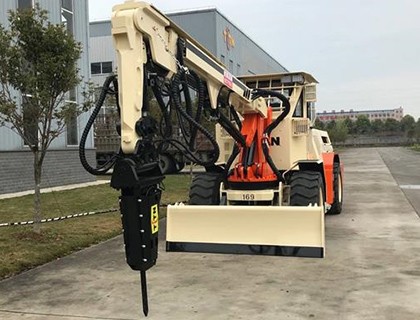

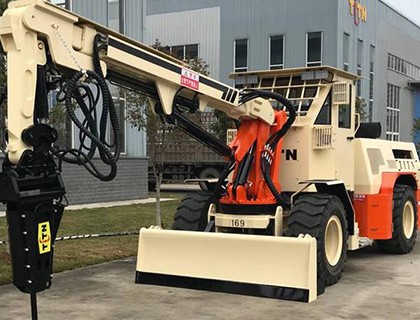

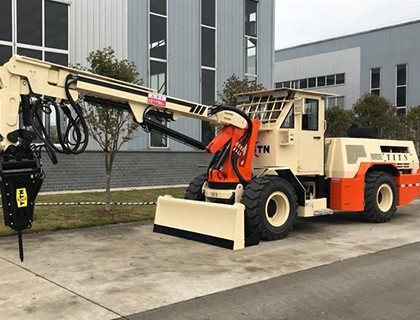

XMPYT series prying trolley: It is a special equipment widely used in domestic non-coal mines for the treatment of hidden dangers of roof fall roofing. It is also called roadway cleaning machine and prying top truck. The XMPYT series skimming trolleys currently produced in finalized production mainly include: XMPYT-97-700A, XMPYT-97-700B and XMPYT-45-450, and other three general-purpose products. Among them, they are classified according to the applicable detailed design. , Each model is specially designed and configured, and can be divided into a series of products such as general-purpose, plateau climate, high-temperature environment and remote control operation.

Product technical features:

1. The scientific and reasonable structure configuration design meets the requirements of different mine tunnel turning radius, gradeability, and tunnel operation traffic conditions. Among them, special chassis, front bulldozing shovel, fully-sealed wet bridge (loss of pressure) Protective type) and matching American MICO brake system, remote control operating device, safe, stable and reliable, in a leading position.

2. Using high-strength structural steel stamping process, Hawk energy stress aging process and gas shielded welding technology, the structural parts of the whole vehicle are checked for strength and can withstand strong loads.

3. The rotating structure design of the working arm and the prying hammer head, covering a large area, can meet the needs of all-round prying and risk removal operations.

4. The main components of the hydraulic system: prying hammer, hydraulic oil pump, slice proportional handle, solenoid valve group, hydraulic control multi-way valve, priority valve group, rotary reducer, swing cylinder and hydraulic cylinder, brake system, etc. are all imported And the products of domestic high-quality brand manufacturers, with reliable quality and performance, high safety factor, energy saving and consumption reduction, and smooth operation.

5. Air-cooled cooling technology is us
